UL CERTIFIED FAST CHARGER
Elevate your ride with our lightning-fast, reliable charging system, capable of fully recharging your bike in as little as 2 hours, ensuring a day of endless fun. Our UL-certified 10A charging system, complete with a patented heat management system, provides both peace of mind and efficient performance as you power up your bike.
- 2 Hours recharging time
- 10A charging output
-
Aluminum Unibody Frame

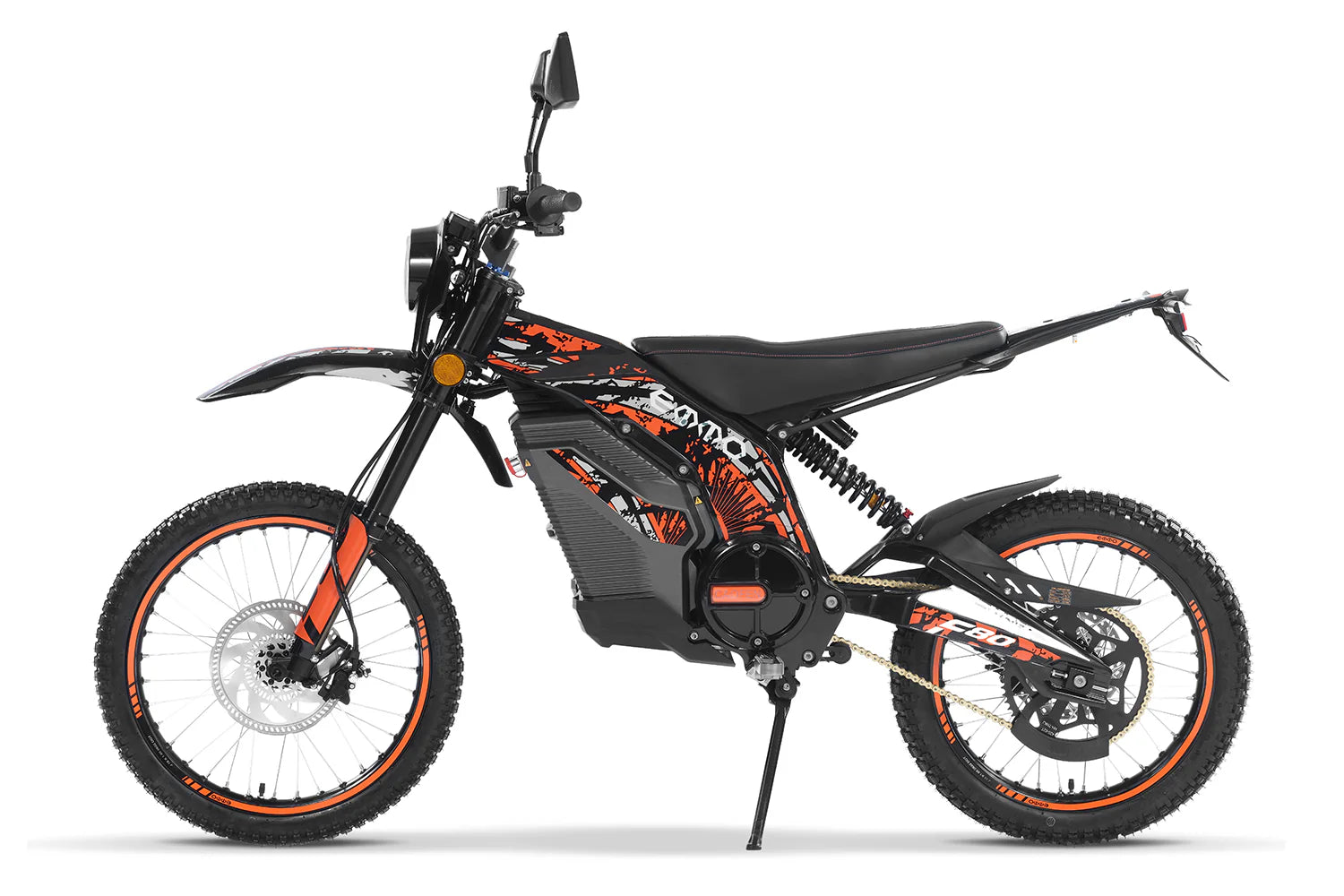

Discover the F80's Aluminum Unibody Frame, a high-strength chassis with 30% increased strength thanks to its zero-welding construction, providing exceptional off-road capabilities. With a lightweight design that boosts overall performance and ensures agility, paired with balanced weight distribution for stability on diverse terrains, this unibody frame elevates your riding experience.
Advanced Battery Temperature ControlThe advanced immersive cooling system ensures superior thermal balance, reducing temperature rise by 50% during use. Riding it in the snow? No problem! The battery temperature control system allows for use in extreme cold conditions as low as -40 degrees. With patented technology enhancing battery life and performance, it guarantees worry-free enjoyment for the long journey ahead.
-
up to 150km travel range
-
50% Longer Battery Life
Specifications:
|
OR-30 |
DS-30 |
DS-48 |
|
| Colour |
Camo, Black/Orange, Black, Grey |
Camo, Black/Orange, Black, Grey |
Black/Orange, Black, Grey |
| Type | Heavy off-road |
Light off-road |
Light off-road |
| Price |
$5,999.00 |
$5,999.00 |
$7,999.00 |
| Motor Type |
Permanent Magnet Synchronous Air-Cooled Motor | Permanent Magnet Synchronous Air-Cooled Motor | Permanent Magnet Synchronous Air-Cooled Motor |
| Rated Power/Peak Power |
4kW / 8kW | 4kW / 8kW | 4kW / 8kW |
| Peak Torque |
310 Nm |
260 Nm |
260 Nm |
| Top Speed |
85 km/h | 85 km/h | 85 km/h |
| Battery |
72V/30Ah LiFePO4 | 72V/30Ah LiFePO4 | 72V/48Ah Ternary Lithium with Immersive Liquid Cooling |
| Max Range |
80 km (30km/h) | 80 km (30km/h) | 150 km (30km/h) |
| Charging Time |
2-3 hours |
2-3 hours |
3-5 hours |
| Climbing Angle |
40 degrees |
40 degrees |
40 degrees |
| Riding Modes |
3 Speed w/ Boost | 3 Speed w/ Boost | 3 Speed w/ Boost |
| Regenerative Braking |
YES |
YES |
YES |
| Frame |
High Strength Unibody Aluminum Alloy Frame | High Strength Unibody Aluminum Alloy Frame | High Strength Unibody Aluminum Alloy Frame |
| Swingarm |
Aluminum Alloy Welded Intersect Swingarm | Unibody Aluminum Alloy Swingarm | Unibody Aluminum Alloy Swingarm |
| Front Suspension |
HKW 38mm Inverted Telescopic Fork: Adjustable preload and rebound, 200mm travel | HKW 38mm Inverted Telescopic Fork: Adjustable preload and rebound, 200mm travel | HKW 38mm Inverted Telescopic Fork: Adjustable preload and rebound, 200mm travel |
| Rear Shock Absorber |
Off-Road Intersect monoshock, adjustable for pre-load and rebound with external reservoir, 65mm travel. | HKW Direct-Link Monoshock, Adjustable for pre-load and rebound with external reservoir, 85mm travel | HKW Direct-Link Monoshock, Adjustable for pre-load and rebound with external reservoir, 85mm travel |
| Front Wheel |
19" wire-spoked rim | 19" wire-spoked rim | 19" wire-spoked rim |
| Rear Wheel |
16" wire-spoked rim | 18" wire-spoked rim | 18" wire-spoked rim |
| Front Tire |
Nylon 70/100-19 Knobby Tire | Nylon 2.25-19 Dual-Sport Tires | Nylon 2.25-19 Dual-Sport Tires |
| Rear Tire |
Nylon 90/100-16 Knobby Tire | Nylon 2.75-18 Dual-Sport Tires | Nylon 2.75-18 Dual-Sport Tires |
| Front Break |
Hydraulic Disc Brake | Hydraulic Disc Brake | Hydraulic Disc Brake |
| Rear Brake |
Hydraulic Disc Brake | Hydraulic Disc Brake | Hydraulic Disc Brake |
| Instrumentation |
LCD Digital Speedometer | LCD Digital Speedometer | LCD Digital Speedometer |
| Ignition |
Remote Ignition | Remote Ignition | Remote Ignition |
| Headlight |
LED Headlight | DOT LED Headlight w/ high/low beam | DOT LED Headlight w/ high/low beam |
| Turning Signals |
Front Turning Signals ONLY | Front & Rear Turning Signals | Front & Rear Turning Signals |
| Taillight & Brake Light |
N/A |
LED Tail Light w/ Brake Light | LED Tail Light w/ Brake Light |
| Fenders |
High Mount Front & Rear Mudguard | High Mount Front & Rear Mudguard | High Mount Front & Rear Mudguard |
| Rear view Mirrors |
N/A |
YES |
YES |
| Steering Lock |
N/A |
YES |
YES |
| Weight |
78KG | 78KG | 81KG |
| Load Capacity |
100KG | 100KG | 100KG |
| Vehicle Dimensions |
195×78.5×107 cm / 77"x31"x42" | 195×78.5×107 cm / 77"x31"x42" | 195×78.5×107 cm / 77"x31"x42" |
| Ground Clearance |
26.5 cm / 10 2/5" | 26.5 cm / 10 2/5" | 26.5 cm / 10 2/5" |
| Wheel Base |
130 cm / 51" | 130 cm / 51" | 130 cm / 51" |
| Seat Height |
84cm / 33" | 84cm / 33" | 84cm / 33" |
