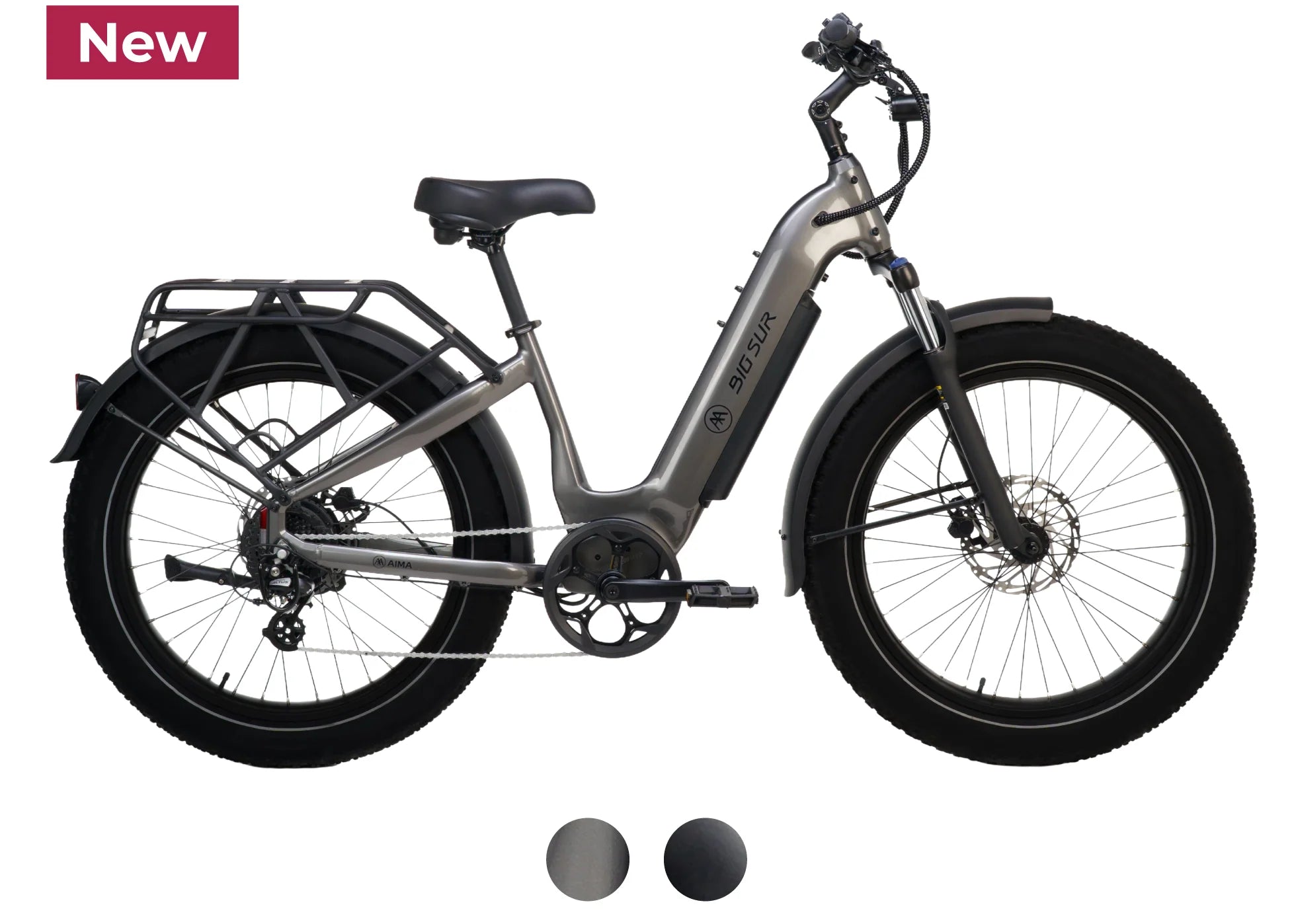

The Big Sur is built for adventure. Engineered for the most demanding riders and tough duties, both on-road and off-road. Highly versatile and amongt the most capable E-Bike in its category.
500W | 720Wh | 80Nm (15 Ah)
500W | 960Wh | 80Nm (20Ah)
- Robust extra high payload Step-Thru Aluminum frame, integral Smooth Welding
- UL Certified, Reliable Pedal Assist System, provided by Bafang
- Powerful Rear Hub Motor, 48V, 500W, Max Torque 80Nm
- High capacity Lithium-ion Battery, 48V, 15Ah (720Wh)
- Torque Sensor
- Integrated Driving Lights & Blinkers Turn Signals
- Bluetooth Connected Navigation System
- Shimano Drivetrain
- Tektro E-Brakes, Hydraulic, 203mm Rotors
- Full Length Fenders and Rear Rack included
Frame: Robust Step-Thru Hydroformed Aluminum alloy frame, Integral Smooth Welding, Internal Cable Routing,Integrated bearings, 100mm BSA, Fully Integrated rear Dropouts with LED Rear light / Brake / Turn Signal lights (remotely controled)
Fork: Zoom, 80mm travel Suspension Fork, Locking Lever, Spring Preload AdjustmentStem: Forged Alloy, 1-1/8” Threadless
Stem: Forged Alloy, Adjustable Angle, 1-1/8” Threadless, with Front Light Mount
Handlebar: Alloy, Riser, Ø31,8mm, Width: 680mm
Grips: Comfort Ergo, Bolt-On
Seatpost: Alloy, Ø30.4mm Quick Release clamp
Saddle: Comfort Wide, Tear-Resistant, Integrated Springs and Lifting Handle
Shifters: Shimano Acera ST-M315, Rapidfire, 8 Speeds
Derailleur: Shimano Altus RD-M310, with Protecting Cage
Chainring: Direct Mount, Splined alloy spider, 52T
Cassette: Shimano HG, Megarange 11-34T
Chain: PYC, 1/2” x 3/32”
Pedals: Alloy, 9/16’’
Brakes: Tektro HD-E3520, Hydraulic Disc Brakes,with Power cut-off sensor
Rotors: Stainless Steel TR-52 Anti Vibration 203mm 6-Bolt rotors
Rims: 26’’, 36H, Wide Profile, Alloy, Schrader
Hubs: Front: Alloy, 135mm, Bolt-On, 6-Bolts Disc Mount, Rear: (See Motor)
Spokes: 12G Stainless Steel, Black
Tires: 26 x 4.0’’, Reflective Side Strips, E-Bike Rated Casing
Driving Lights: (Front): Stem-mounted white driving light, 600 lumens, (Rear): Integrated braking lights & Blinkers (remotely controlled)
Accessories: MIK-HD Alloy Cargo Rack, Fenders, Direct Mount Alloy Kickstand
Listed Weight: 82lbs (37 kg)
Max Payload: 400 lbs (180 kg)
Range varies significantly depending of motor power and battery capacity, and of course, depending on the selected power assist level. Other factors influencing range are nature of terrain, wind speed, gradient, riding style, total rider and cargo weight, tire pressure and temperature.
AIMA’s software provides the following estimated range figures based on a fully charged, brand new battery:
(15Ah)
- Assist Level 1: 80 km
- Assist Level 2: 70 km
- Assist Level 3: 60 km
- Assist Level 4: 50 km
- Assist Level 5: 45 km
(20Ah)
- Assist Level 1: 140 km
- Assist Level 2: 120 km
- Assist Level 3: 100 km
- Assist Level 4: 80 km
- Assist Level 5: 60 km
For optimal battery health, avoid fully draining the battery. Instead, aim to recharge when the remaining capacity drops to around 10% to help preserve long-term performance and lifespan.
