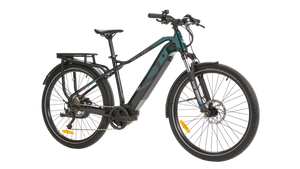

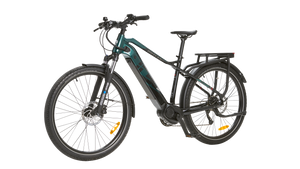

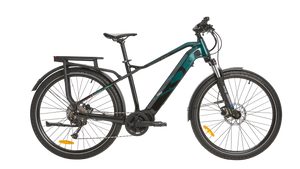

ALL-ROAD READY FOR TREKKING AND TOURING
An active all-road trekking bike with powerful sporty demeanor and dynamic motor system delivering all the advantages of electric assist while maintaining a traditional riding experience. Built for adventure with increased suspension, quick rolling center/high traction edge tires, heavy duty rear rack (with plenty of capacity for mounting touring bags).
MOTOR & THROTTLE
All-road tuned 130Nm/500W mid motor with Torque/Cadence sensing and throttle delivers a powerful and intuitive natural riding experience.
POWER AND RANGE
720Wh battery providing up to 95km (60mi)* range. Ready everyday with plug and play charging and all day range.
PEDAL ASSIST SEGMENTS
Eco/Tour/Sport/Turbo/Boost User programmable and seamless intelligent riding experience.
FRAMESET

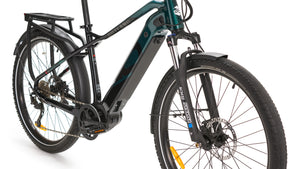

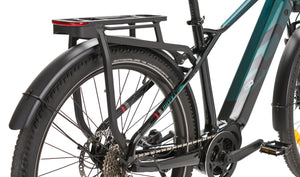

FRAME Hydroformed Alloy, 27.5 Trekking frame, internal cable routing head tube ported, removable down tube battery with security lock, accessory ready rear cargo rack
COLOR Green and Black
FORK Suntour XCM32 HLO DS suspension, 80mm travel, lockout, Q-Loc Thru Axle
DRIVETRAIN
SHIFTERS SHIMANO ALIVIO 9-speed Rapidfire Plus
CHAINRINGS 42T with Narrow Wide teeth
CHAIN KMC E9-S

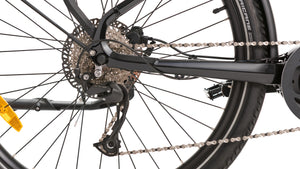

REAR DERAILLEUR SHIMANO ALIVIO 9-speed
CASSETTE SHIMANO ALIVIO 9-speed 11-34T
COMPONENTS

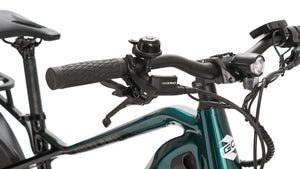

HANDLEBAR 720mm, 28mm rise, 31.8mm dia.
GRIPS VELO, Rubber palm rest, 140mm
STEM 45mm with 3 degree rise, 31.8mm clamp dia.
SEAT POST 31.6mm (350mm)
SADDLE SELLE ROYAL BRAKE
LEVERS TEKTRO HDE350 with power cut off switch
ELECTRIC TECHNOLOGY
BLUETOOTH NEW iGO Mobile App (Android and iOS). Customizable profile and performance settings with full diagnostic monitoring and alerts.
DISPLAY UNIT 2” HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist

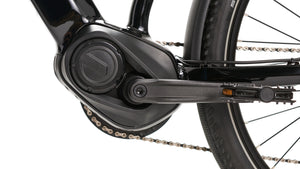

MOTOR iGO DRIVE RS 500W mid motor, 48V

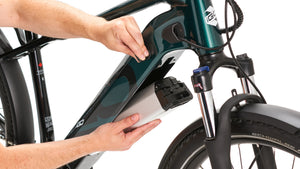

TORQUE up to 130Nm BATTERY 5000mAh SAMSUNG cell, removable with security lock (48V | 15Ah | 720Wh)
RANGE 95km (60mi) *
PEDAL ASSIST SYSTEM Eco/Tour/Sport/Turbo/Boost color coded per PAS level
THROTTLE On-Demand, Removable
SENSOR Internal Torque, Cadence, Speed
CLASS Class2 / Class1 optional / Class3 capable where permitted **
