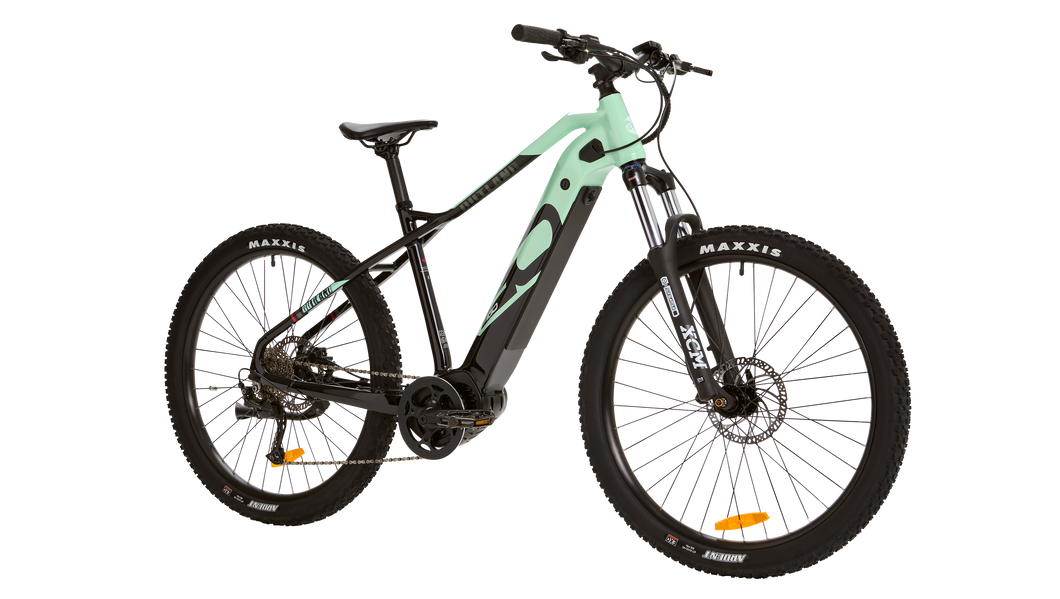

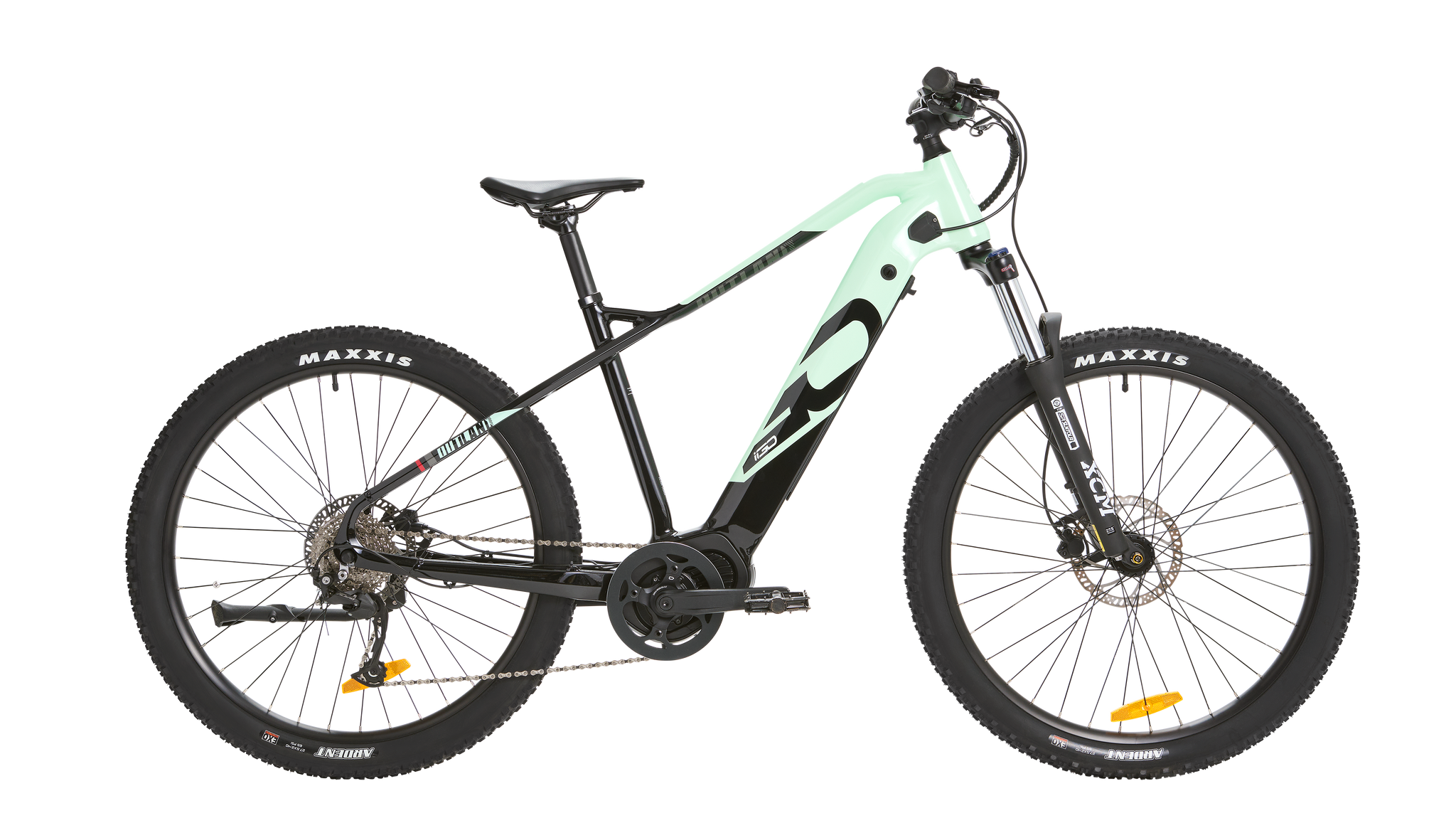

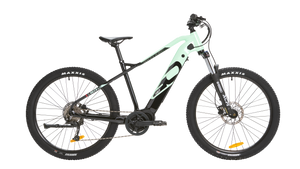

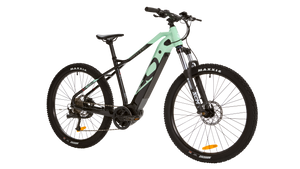

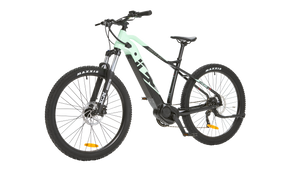

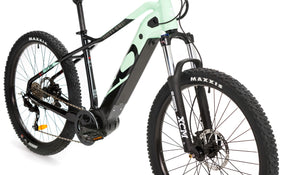

Are you ready to take your mountain biking to the next level? Look no further! This powerful and capable hardtail eBike is equipped with components for aggressive trail riding. Whether you're climbing steep inclines or navigating rocky terrain, the Sawback RS can handle it all. With a natural pedal feel that enhances the riding experience, you'll feel like you're one with the bike as you explore the great outdoors. Escape into nature and explore new possibilities with the Sawback RS.
SPECIFICATIONS
| FRAMESET | |
|---|---|
| FRAME | Hydroformed Alloy, 27.5 Hardtail MTB frame, internal cable routing head tube ported, removable down tube battery with security lock |
| COLOR | Celeste and Black |
| FORK | SUNTOUR SF-18 27.5” XM34-DS-Boost-LO suspension, 120mm travel, lockout, Thru Axle |
| DRIVETRAIN | |
| SHIFTERS | SHIMANO ALIVIO 9-speed Rapidfire Plus |
| CHAINRINGS | 34T with Narrow Wide teeth |
| CHAIN | KMC E9-S |

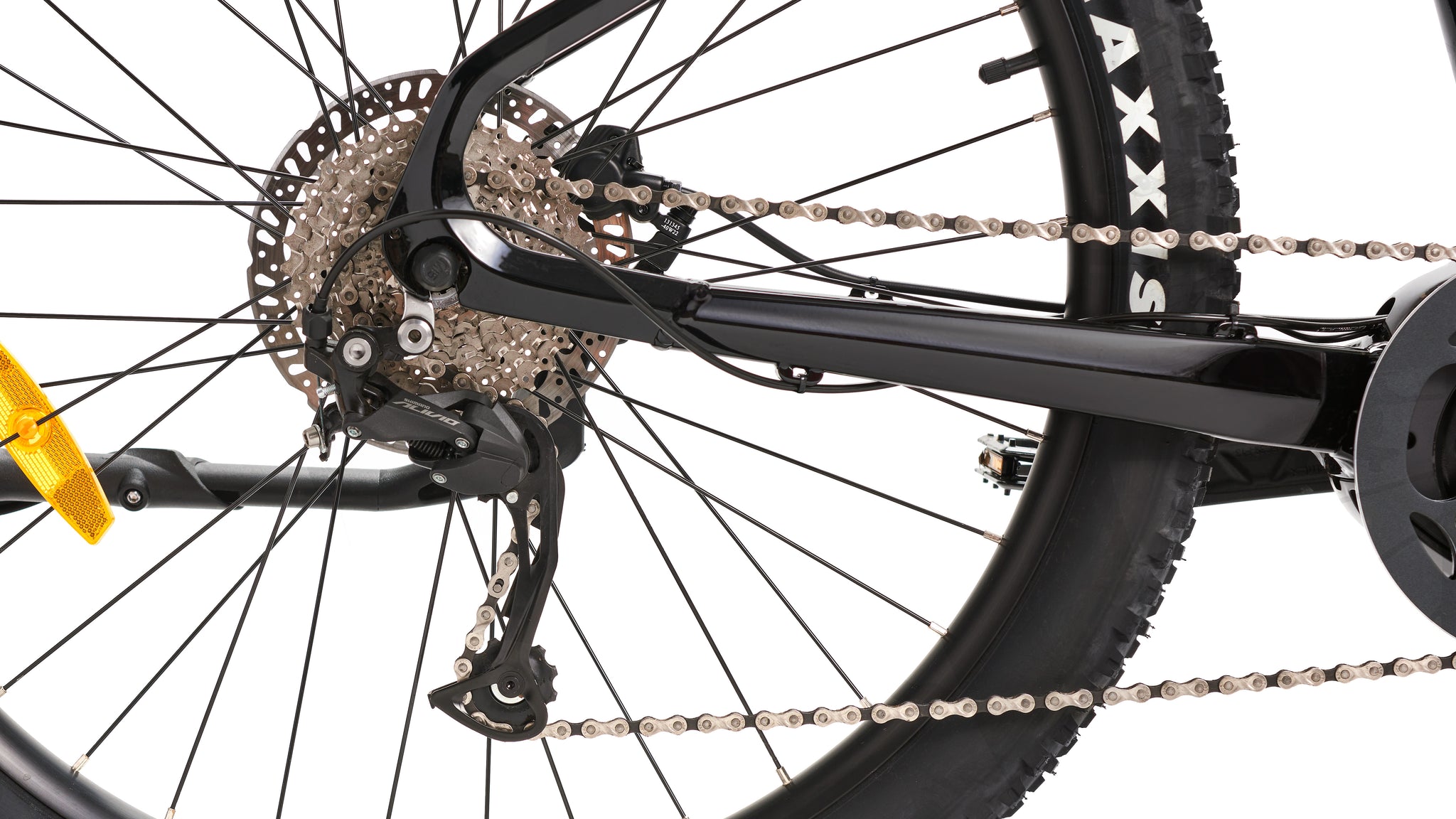

| REAR DERAILLEUR | SHIMANO ALIVIO 9-speed |
| CASSETTE | SHIMANO ALIVIO 9-speed 11-36T |
| COMPONENTS | |

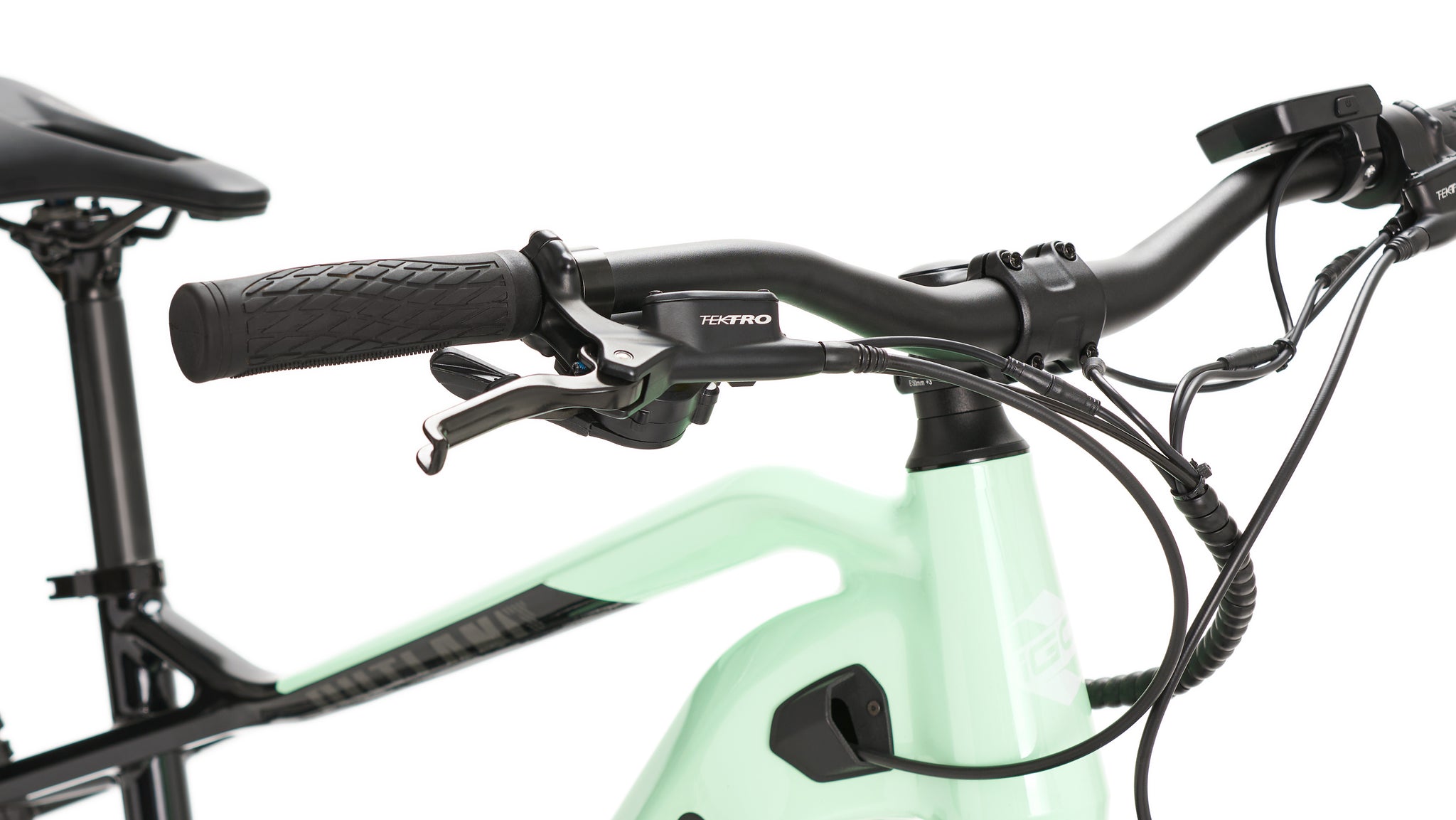

| HANDLEBAR | 720mm, 28mm rise, 31.8mm dia. |
| GRIPS | VELO, Rubber palm rest, 132mm |
| STEM | 45mm with 3 degree rise, 31.8mm clamp dia. |
|
|
|
| SADDLE | SELLE ROYAL Viento |
| BRAKE LEVERS | TEKTRO HDE350 with power cut off switch |
| BRAKE CALIPERS | TEKTRO HDE350 Hydraulic Disc |
| ROTORS |
|
| WHEELS | |

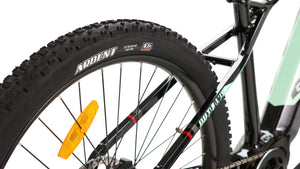

| TIRES | MAXXIS M315 EXO 27.5”x2.4” |
| RIMS | 27.5”, Dual Wall Alloy, black |
| ELECTRIC TECHNOLOGY | |
|---|---|
| BLUETOOTH | NEW iGO Mobile App (Android and iOS). Customizable profile and performance settings with full diagnostic monitoring and alerts. |
| DISPLAY UNIT |
2” HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist |

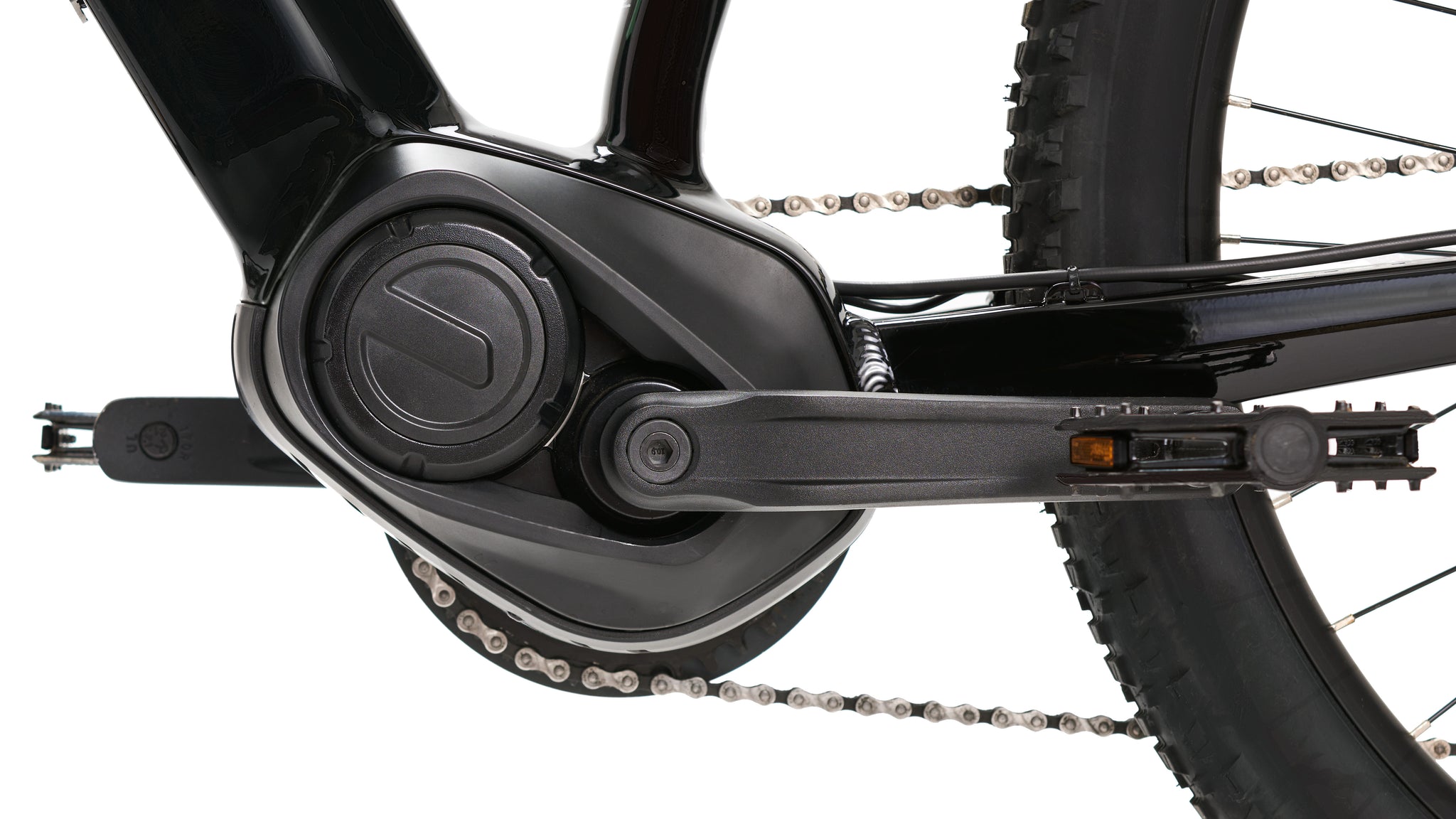

| MOTOR | iGO DRIVE RS 500W mid motor, 48V |
| TORQUE | up to 130Nm |

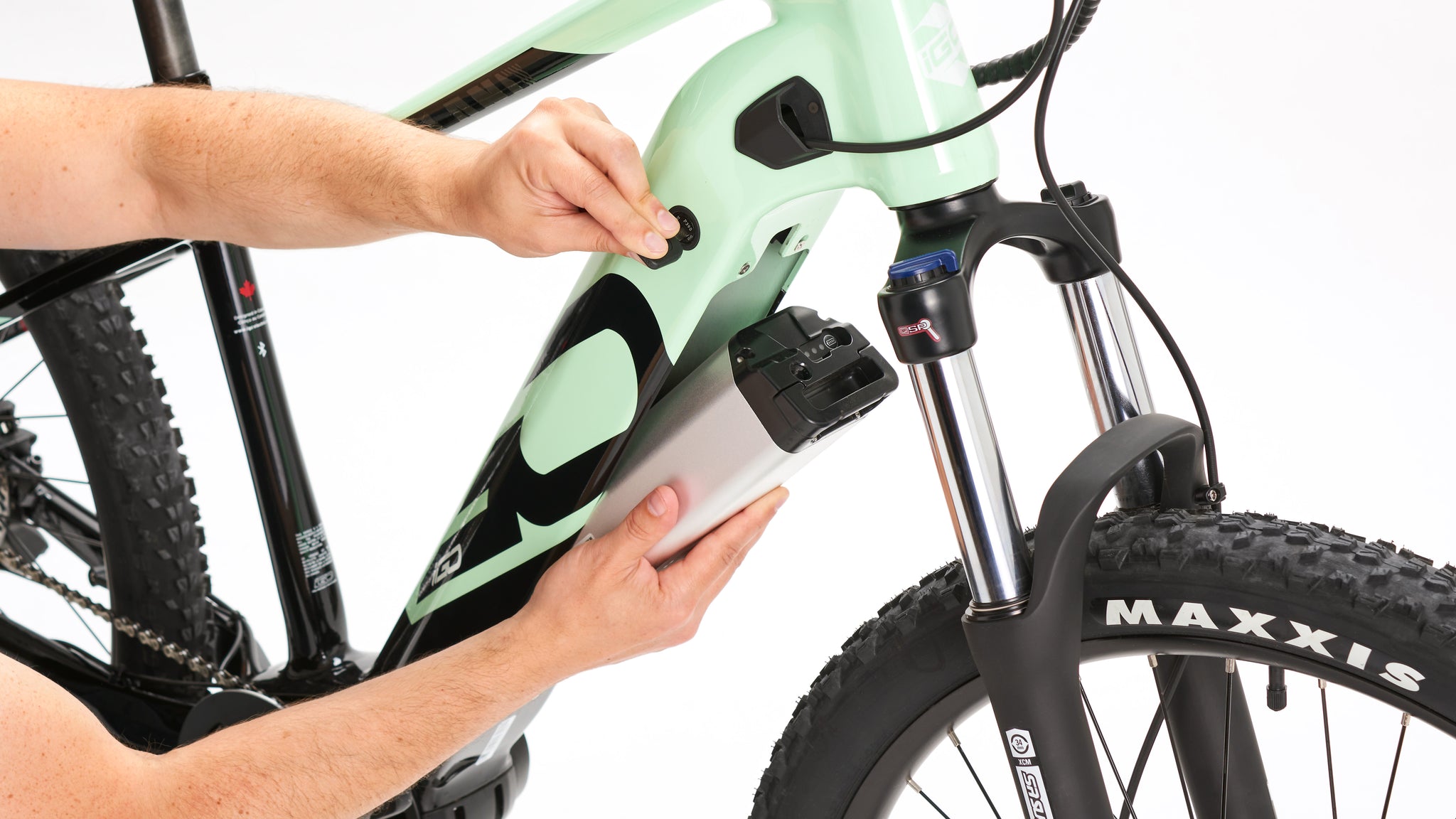

| BATTERY | 5000mAh SAMSUNG cell, removable with security lock (48V | 15Ah | 720Wh) |
| RANGE | 70km (45mi) * |
| PEDAL ASSIST SYSTEM | Eco/Tour/Sport/Turbo/Boost color coded per PAS level |
| THROTTLE | On-Demand, Removable |
| SENSOR | Internal Torque, Cadence, Speed |
| CLASS | Class2 / Class1 optional / Class3 capable where permitted ** |
| OTHER | |
| ACCESSORIES (INCLUDED) | Water Bottle Bosses on Seat Tube, Kickstand, VP-501 Pedals, Tool Kit, Battery Charger |
| BIKE WEIGHT (without battery) | 27.4kg (60.4 lbs) |
|
|
125kg (275 lbs) |
| BATTERY WEIGHT | 3.5kg (7.7 lbs) |
