ACCESSIBLE AND INTUITIVE ENHANCED RIDING CAPABILITY
Easy to mount frame with powerful, dynamic motor system delivering the advantages of electric assist to seamlessly enhance the traditional riding experience. Customizable assist settings to satisfy seasoned riders, enhanced safety features and serviceability built into the fabric or the bike for durability and peace of mind.
MOTOR & THROTTLE
City tuned 100Nm/350W mid motor with Torque/Cadence sensing and throttle delivers a powerful and intuitive natural riding experience.
POWER AND RANGE
720Wh battery providing up to 110km (69mi)* range. Ready everyday with plug and play charging and all day range.
PEDAL ASSIST SEGMENTS
Eco/Tour/Sport/Turbo/Boost User programmable and seamless intelligent riding experience
FRAME Hydroformed Alloy, 27.5 Step Through frame, internal cable routing head tube ported, removable down tube battery with security lock, accessory ready rear cargo rack
FORK RST BLAZE-27.5TNL-15, 80mm travel, lockout, Thru Axle
SHIFTERS SHIMANO ALIVIO 9-speed Rapidfire Plus
CHAINRINGS 42T with Narrow Wide teeth
CHAIN KMC E9-S
REAR DERAILLEUR SHIMANO ALIVIO 9-speed
CASSETTE SHIMANO ALIVIO 9-speed 11-34T
HANDLEBAR 640mm, 45mm rise, 31.8mm dia.
GRIPS VELO, Ergonomic, 135mm
STEM 80mm with 7 degree rise SEAT POST 31.6mm (350mm)
SADDLE SELLE ROYAL Rio
BRAKE LEVERS TEKTRO HDE350 with power cut off switch

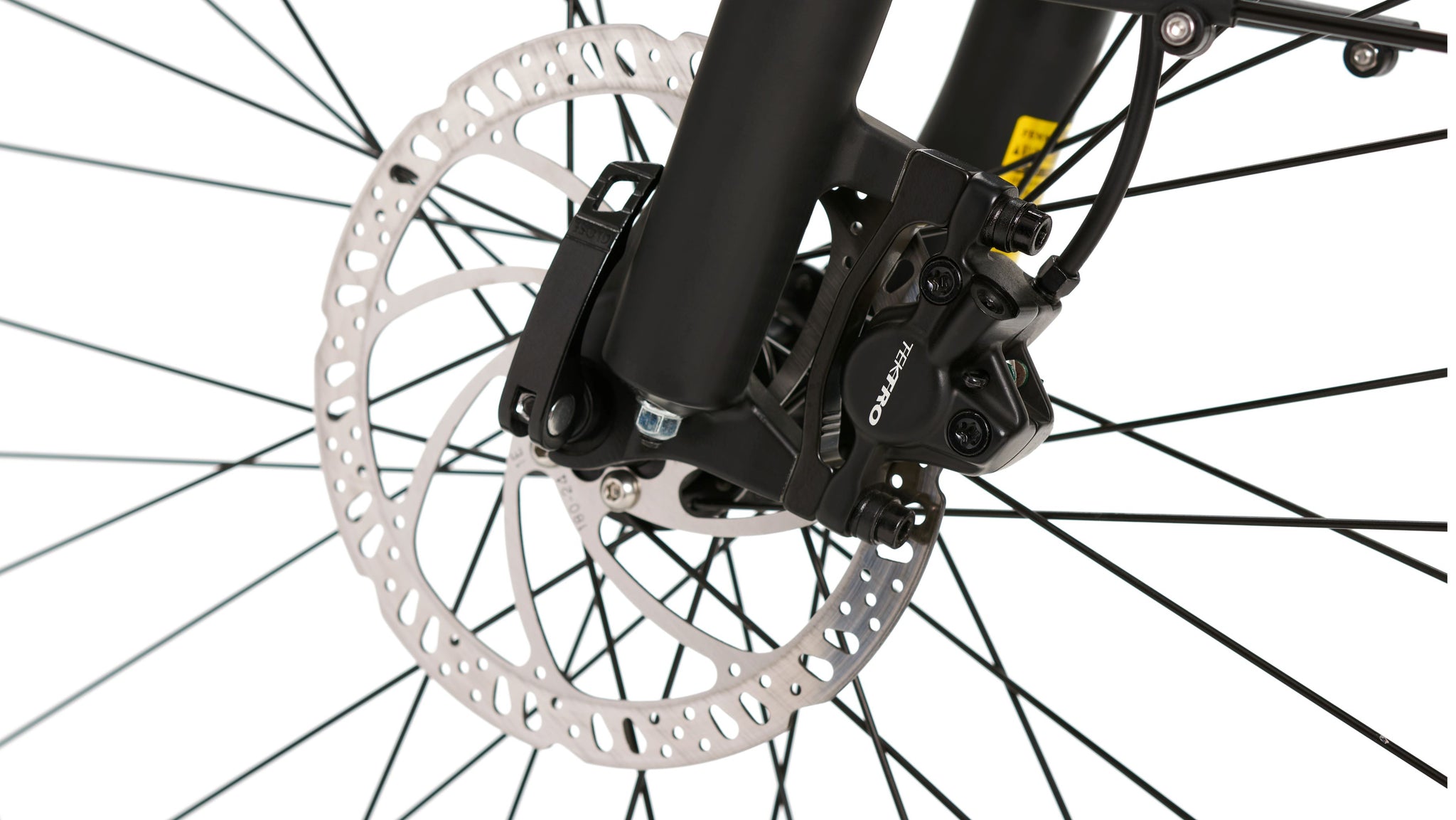

BRAKE CALIPERS TEKTRO HDE350 Hydraulic Disc
WHEELS TIRES WTB GROOV-E 27.5”x2.4”, 60tpi RIMS 27.5”, Dual Wall Alloy, black
BLUETOOTH NEW iGO Mobile App (Android and iOS). Customizable profile and performance settings with full diagnostic monitoring and alerts.
DISPLAY UNIT 2” HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist
MOTOR iGO DRIVE LS 350W mid motor, 48V TORQUE up to 100Nm
BATTERY 5000mAh SAMSUNG cell, removable with security lock (48V | 15Ah | 720Wh)
RANGE 110km (69mi) *
PEDAL ASSIST SYSTEM Eco/Tour/Sport/Turbo/Boost color coded per PAS level
THROTTLE On-Demand, Removable
SENSOR Internal Torque, Cadence, Speed
CLASS Class2 / Class1 optional / Class3 capable where permitted **

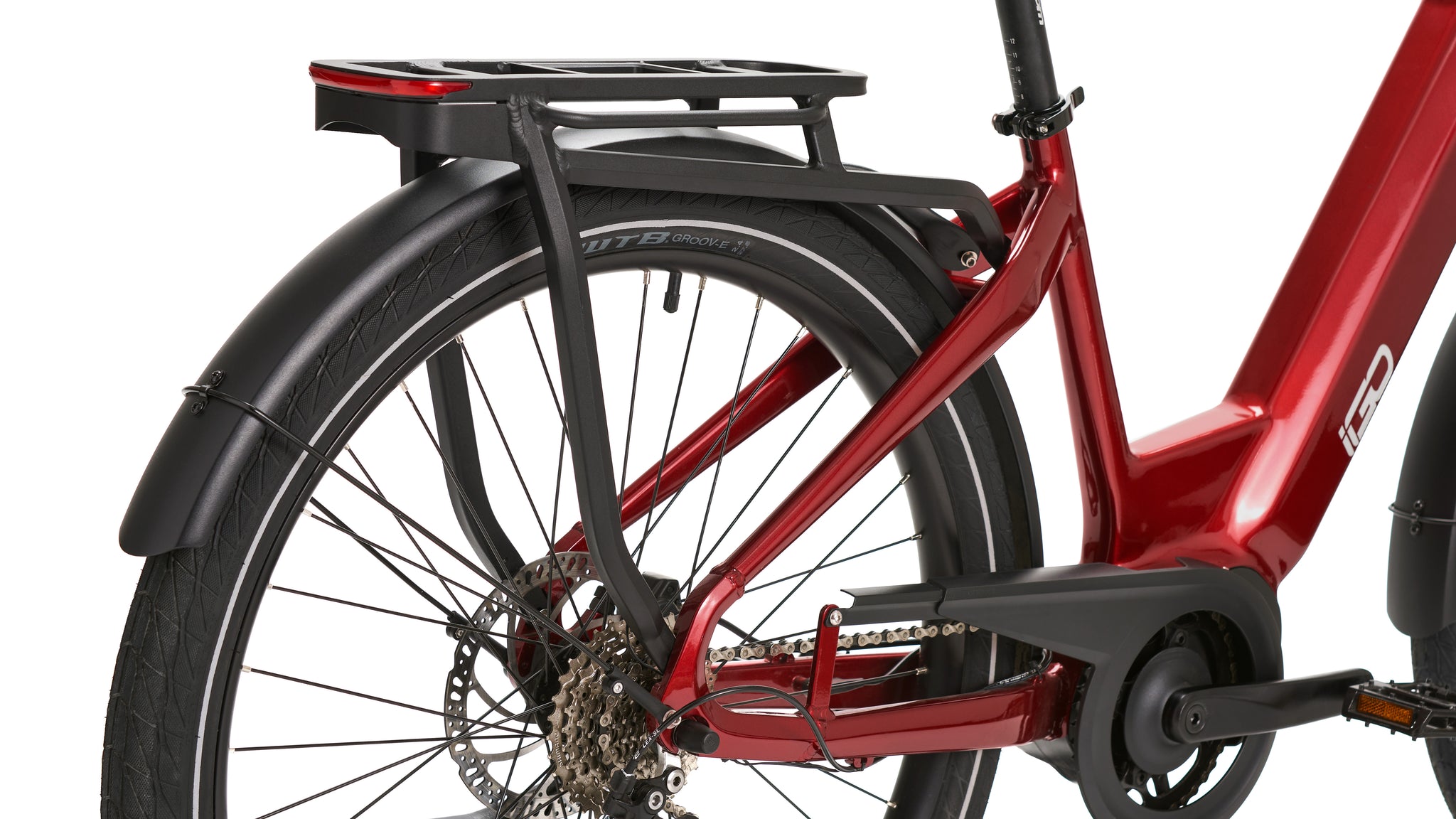

Front LED light XC-259A (powered by main battery), Rear LED SPANNINGA LED Commuter Glow XE with brake light Integrated into rear rack (powered by main battery), Front & Rear Fenders, Rear Cargo Rack Accessory ready, Integrated Chainring Guard, Water Bottle Bosses on Seat Tube, Kickstand, Wellgo Pedals, Bell, Tool Kit, Battery Charger
BIKE WEIGHT (without battery) 25.3kg (55.8 lbs) WEIGHT CAPACITY 125kg (275 lbs) BATTERY WEIGHT 3.5kg (7.7 lbs
