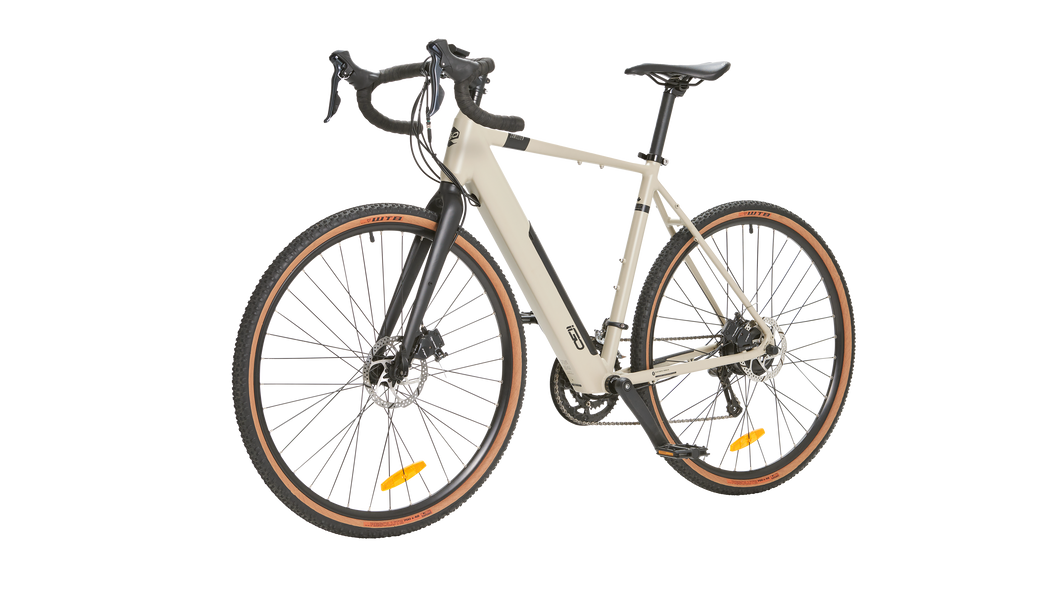

LIGHTWEIGHT GRAVEL SPECIFIC BUILD
Lightweight with drop-bars, 42c WTB gravel tires and 2x10 road capable group set. A durable and robust build that inspires confidence through stability, traction and exceptional control on rough or rocky terrain and will still speed along the open road with an exceptionally agile and natural ride feeling.
MOTOR
250W slim form motor with advanced-response dual side 40 pulse torque sensor technology for intuitive reactivity to rider input.
POWER AND RANGE
378Wh capacity removable integrated battery with security lock. Power when you need it, discrete and passive when you don’t. Providing up to 90km (56mi)* range.
PEDAL ASSIST SEGMENTS
Eco/Tour/Sport/Turbo/Boost User programmable and seamless intelligent riding experience.
FRAMESET
FRAME Hydroformed 6061 Aluminum Alloy 700 Gravel frame with smooth welds. Fender/rack mounts, internal cable routing. Removable integrated battery with security lock
COLOR Matte Taupe with Black accents
FORK Hydroformed alloy 700C with quick release
DRIVETRAIN
SHIFTERS MICROSHIFT CENTOS 2x10

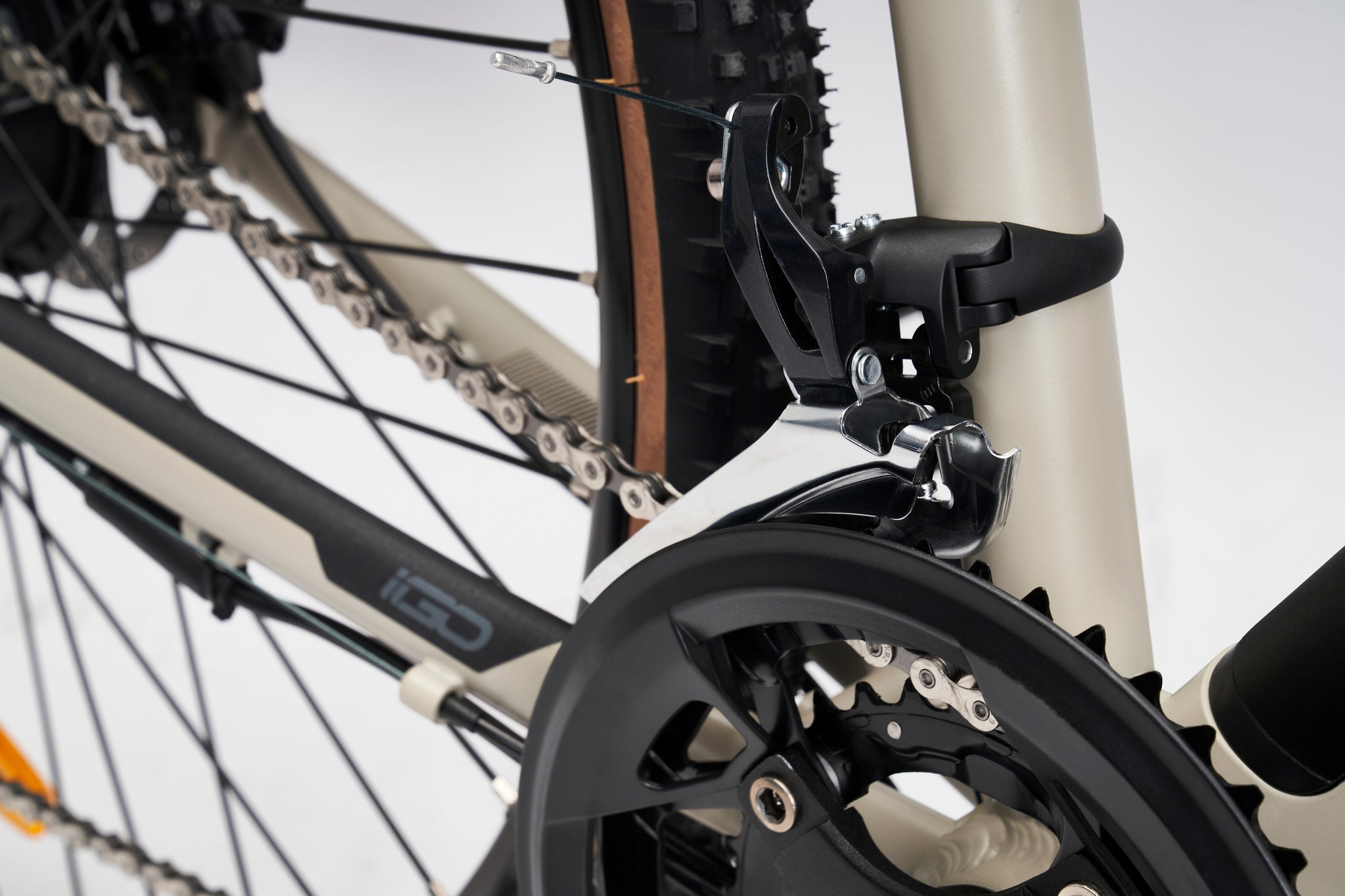

FRONT DERAILLEUR MICROSHIFT CENTOS FD-R712-B
CHAINRINGS 48/32T CHAIN KMC X10 Double X-Durability
REAR DERAILLEUR MICROSHIFT CENTOS RD-R51M 10-speed
CASSETTE MICROSHIFT CENTOS 10-speed 11-32T
COMPONENTS
HANDLEBAR Alloy drop bar, 420mm
GRIPS FSA bar tape - black STEM Alloy 4 bolt, 90mm, 31.8mm clamp dia.
SEAT POST Alloy 30.4mm with quick release
SADDLE VELO for iGO
BRAKE LEVERS MICROSHIFT CENTOS Dual Control Levers
BRAKE CALIPERS TEKTRO Cable Actuated Hydraulic Disc HY/RD
ROTORS F160/R160
WHEELS
TIRES WTB Resolute 700X42C - tanwall
RIMS Alloy P23D 700C - black
ELECTRIC TECHNOLOGY
BLUETOOTH NEW iGO Mobile App (Android and iOS). Customizable profile and performance settings with full diagnostic monitoring and alerts.
DISPLAY UNIT 2” HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist
MOTOR iGO DRIVE SE 250W geared rear hub drive, 36V TORQUE up to 45Nm
BATTERY 3500mAh SAMSUNG cell, integrated removable lithium battery with security lock (36V | 10.5Ah | 378Wh)
RANGE 90km (56mi) *
PEDAL ASSIST SYSTEM Eco/Tour/Sport/Turbo/Boost color coded per PAS level
SENSOR Dual sided 40 pulse Torque Sensor
CLASS Class1 / Class3 capable where permitted **
ACCESSORIES INCLUDED
Water Bottle Bosses on Seat Tube & Under Top Tube, Tool Kit, Battery Charger
NOTES
BIKE WEIGHT (without battery) 16.7kg (36.8 lbs) WEIGHT CAPACITY 125kg (275 lbs) BATTERY WEIGHT 2kg (4.4 lbs)
