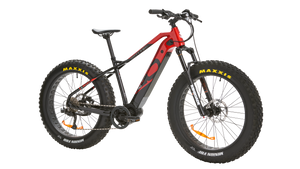

ALL SEASON RIDING POWERHOUSE
Enhanced control and handling capability over sand, snow and through mud with a dynamic motor system delivering all the advantages of electric assist while maintaining a traditional riding experience.
MOTOR & THROTTLE

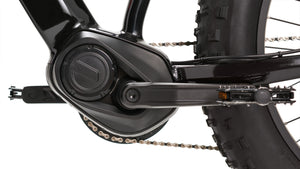

130Nm/500W mid motor with Torque/Cadence sensing and throttle delivers a powerful and intuitive natural riding experience.
POWER AND RANGE
720Wh battery providing up to 60km (37mi)* range with 4.8” tires. Ready everyday with plug and play charging and all day range.
PEDAL ASSIST SEGMENTS
Eco/Tour/Sport/Turbo/Boost User programmable and seamless intelligent riding experience

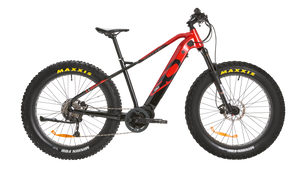

FRAMESET

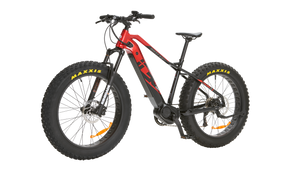

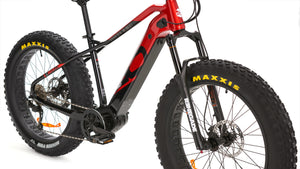

FRAME Hydroformed Alloy, 26 Fatbike frame, internal cable routing head tube ported, removable down tube battery with security lock
COLOR Red and Black
FORK RST RENEGADE 26” suspension, 120mm travel, lockout, Thru Axle

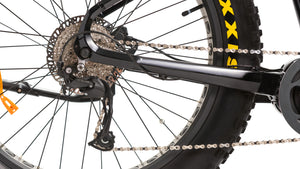

DRIVETRAIN
SHIFTERS SHIMANO ALIVIO 9-speed Rapidfire Plus
CHAINRINGS 34T with Narrow Wide teeth
CHAIN KMC E9-S
REAR DERAILLEUR SHIMANO ALIVIO 9-speed
CASSETTE SHIMANO ALIVIO 9-speed 11-36T
COMPONENTS

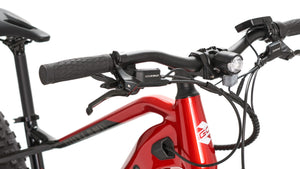

HANDLEBAR 700mm, 28mm rise, 31.8mm dia.
GRIPS VELO, Rubber palm rest, 132mm STEM 41mm with 3 degree rise, 31.8mm clamp dia.
SEAT POST EXA KSP900-1 Dropper Post, 150mm travel (445mm)
SADDLE SELLE ROYAL Viento
BRAKE LEVERS TEKTRO HDE350 with power cut off switch

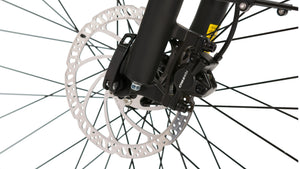

BRAKE CALIPERS TEKTRO HDE350 Hydraulic Disc ROTORS 180mm
WHEELS

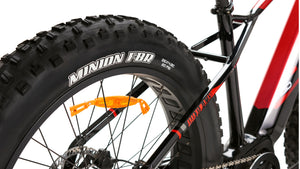

TIRES MAXXIS Minion M346(F) M347(R) 26”x4.8”
RIMS 26"x95mm Fat bike rim
ELECTRIC TECHNOLOGY
BLUETOOTH NEW iGO Mobile App (Android and iOS). Customizable profile and performance settings with full diagnostic monitoring and alerts.
DISPLAY UNIT 2” HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist
MOTOR iGO DRIVE RS 500W mid motor, 48V

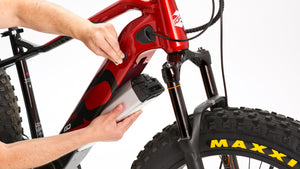

TORQUE up to 130Nm BATTERY 5000mAh SAMSUNG cell, removable with security lock (48V | 15Ah | 720Wh)
RANGE 60km (37mi) *
PEDAL ASSIST SYSTEM Eco/Tour/Sport/Turbo/Boost color coded per PAS level
THROTTLE On-Demand, Removable
SENSOR Internal Torque, Cadence, Speed
CLASS Class2 / Class1 optional / Class3 capable where permitted **
ACCESSORIES INCLUDED
Front LED light XC-259A (powered by main battery), Water Bottle Bosses on Seat Tube, Kickstand, VP-501 Alloy MTB Pedals - Black, Bell, Tool Kit, Battery Charger
NOTES
BIKE WEIGHT (without battery) 26.9kg (59.3 lbs) WEIGHT CAPACITY 125kg (275 lbs) BATTERY WEIGHT 3.5kg (7.7 lbs)
