VERSATILITY, SAFETY AND PEACE OF MIND

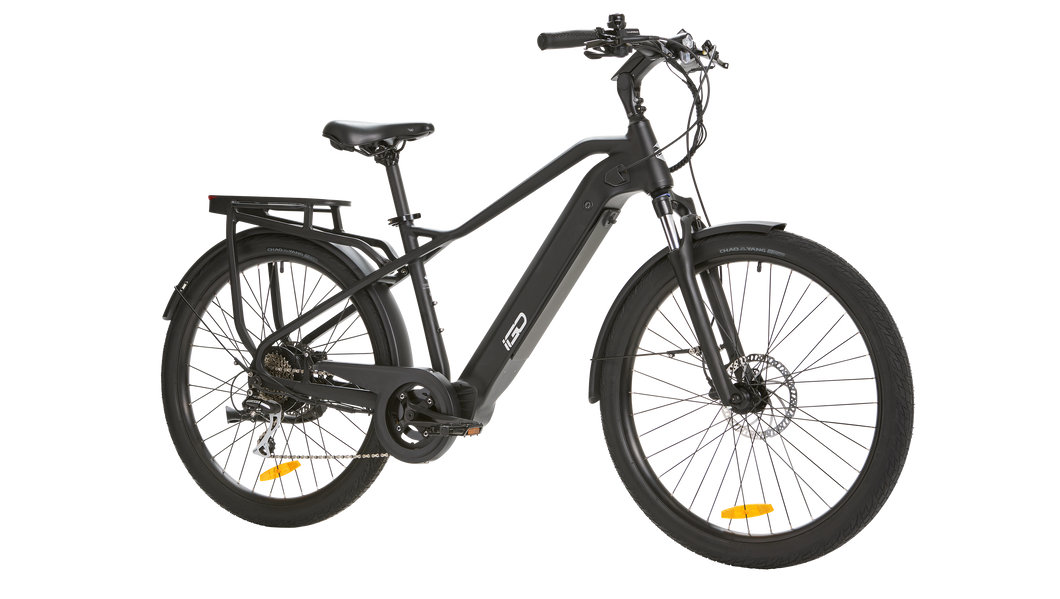

Hybrid urban eBike with ERGOFIT design for maximum versatility and comfort. Effortless control and enhanced safety and security features allow freedom to simply enjoy the ride. The perfect introduction to active transport, well suited for everyday use
MOTOR & THROTTLE
With up to 55Nm of torque the 500W throttle enabled motor system delivers a safe, consistent and dependable riding experience.
POWER AND RANGE
720Wh removable integrated battery with security lock providing up to 110km (69mi)* range. Ready everyday with plug and play charging and all day range.
PEDAL ASSIST SEGMENTS
Eco/Tour/Sport/Turbo/Boost User programmable and seamless intelligent riding experience.
FRAMESET
FRAME Hydroformed Alloy, 27.5 Hybrid ERGOFIT frame, internal cable routing head tube ported, removable down tube battery with security lock, accessory ready rear cargo rack
COLOR Black
FORK RST VOLANT 700C, 80mm travel, lockout with quick release
DRIVETRAIN
SHIFTERS SHIMANO ALTUS 8-speed
CHAINRINGS 42T with Narrow Wide teeth
CHAIN KMC E8-S REAR DERAILLEUR SHIMANO ACERA 8-speed
CASSETTE SHIMANO ACERA 8-speed 11-32T
COMPONENTS
HANDLEBAR 640mm, 16mm rise, 31.8mm dia.
GRIPS VELO, Ergonomic, 135mm
STEM Toolless adjustable threadless with 0 to 90 degree rise
SEAT POST 31.6mm (350mm)
SADDLE SELLE ROYAL Rio
BRAKE LEVERS TEKTRO HDE350 with power cut off switch
BRAKE CALIPERS TEKTRO HDE350 Hydraulic Disc ROTORS 180mm
WHEELS
TIRES CHAOYANG 27.5”x2.4”
RIMS 27.5”, Dual Wall Alloy, black
ELECTRIC TECHNOLOGY
BLUETOOTH NEW iGO Mobile App (Android and iOS). Customizable profile and performance settings with full diagnostic monitoring and alerts.
DISPLAY UNIT 2” HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist
MOTOR iGO DRIVE LE 500W geared rear hub motor, 48V
TORQUE up to 55Nm
BATTERY 5000mAh SAMSUNG cell, removable with security lock (48V | 15Ah | 720Wh)
RANGE 110km (69mi) *
PEDAL ASSIST SYSTEM Eco/Tour/Sport/Turbo/Boost color coded per PAS level
THROTTLE On-Demand, Removable
SENSOR Electronic 32 pulse Cadence Sensor integrated into the bottom bracket
CLASS Class2 / Class1 optional / Class3 capable where permitted **
ACCESSORIES INCLUDED
Front LED light XC-259A (powered by main battery), Rear LED SPANNINGA LED Commuter Glow XE with brake light Integrated into rear rack (powered by main battery), Front & Rear Fenders, Rear Cargo Rack Accessory ready, Integrated Chainring Guard, Water Bottle Bosses on Seat Tube, Kickstand, Wellgo Pedals, Bell, Tool Kit, Battery Charge
NOTES
BIKE WEIGHT (without battery) 25.7kg (56.7 lbs) WEIGHT CAPACITY 125kg (275 lbs) BATTERY WEIGHT 3.5kg (7.7 lbs)
